USDOT Number Kit

Regulation sizes

4.9· trusted by Cincinnati businesses

Company name, USDOT and MC numbers at FMCSA-legible sizes, two doors per kit. Pick die-cut lettering or a peel-and-stick kiss-cut decal, type your numbers, and watch the proof draw itself on the door. Nothing to upload.

$89per kit

ships in 3 business days · final proof by email before we cut or print

Kit type

Options

Company name (as registered)USDOT numberMC number (optional)

Lettering color

Preview on a truck that is

Instant proof · die-cut lettering

blue semi truck driver door with your USDOT lettering

About 22 × 10 in per door with 2 in letters, shown at true size on a 36 in door. Two doors per kit. Each letter is cut from solid vinyl. Only the letters stay on the door, no background.

Quantity — one kit per truck

over 50, call for a volume quote

We email a final proof before anything is cut or printed. Nothing to upload.

Specs & artwork guidelines Die-cut vs kiss-cut: which kit is which Fleet graphics & trailer lettering Talk to the shop — (513) 694-0402

Two kits, one regulation

Die-cut or kiss-cut: which kit is which

Both kits put the same legal name and USDOT number on both doors at 2 inches, and both pass a roadside inspection. The difference is what gets cut, what you peel, and what is left on the paint.

Die-cut lettering kit

The painted-on look

How it arrives

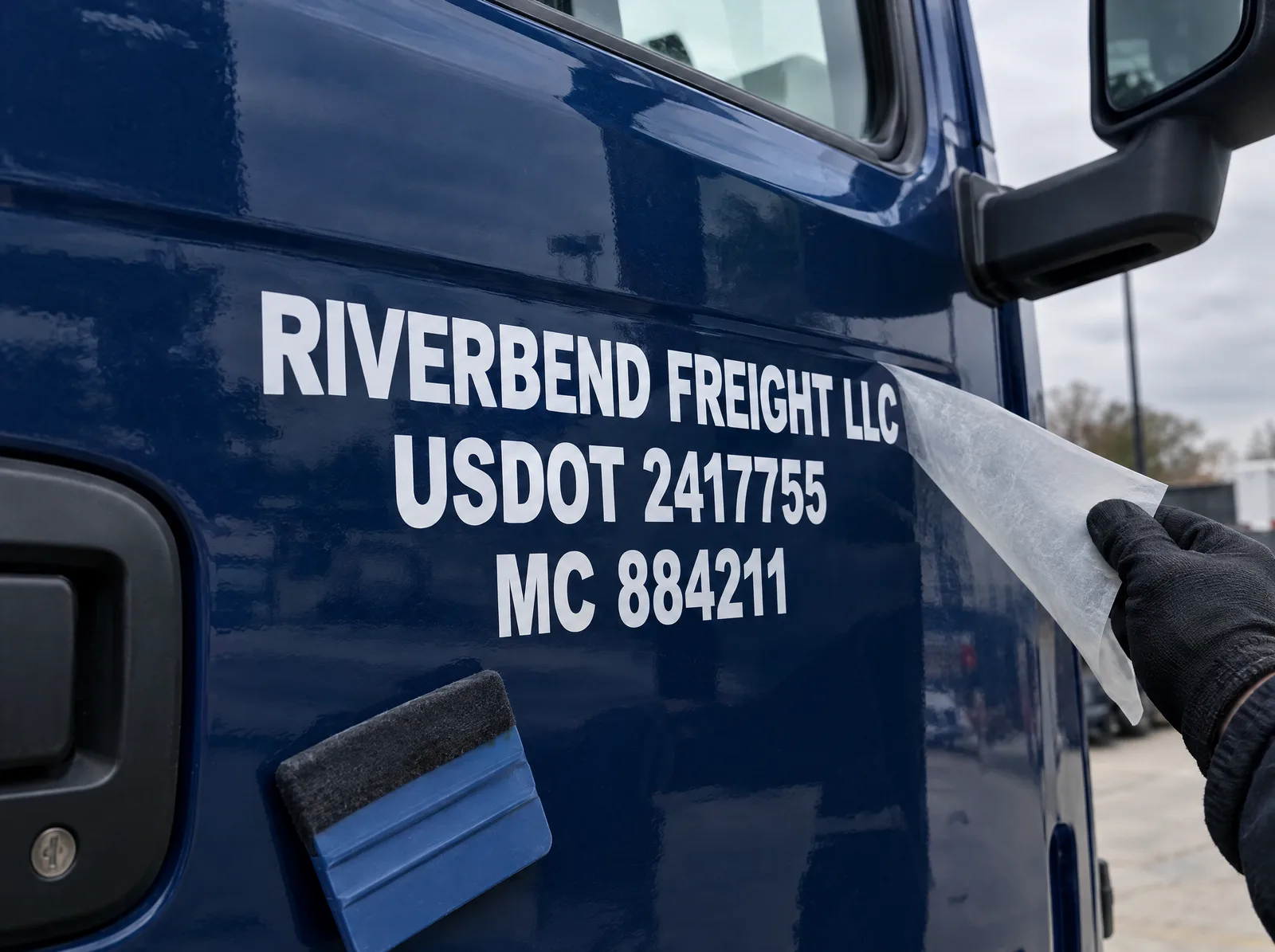

Die-cut letters on a truck door, transfer tape peeling away — Going on the door

What it is: Every letter and number cut out of solid-color vinyl. The waste vinyl around them is weeded away by hand, and the letters ship held in position under one sheet of transfer tape per door.
On the door: Only the letters. No panel, no outline, no background. The door color shows between them.
Install: Peel the liner, squeegee through the tape, peel the tape. About 10 minutes a door. The tape keeps every letter spaced and level.
Best for: Owner-operators and fleets that want lettering that looks factory. One color, with a second color available.
Lasts: Cast vinyl, 7 years outdoors.

Kiss-cut decal kit

Peel and stick

How it arrives

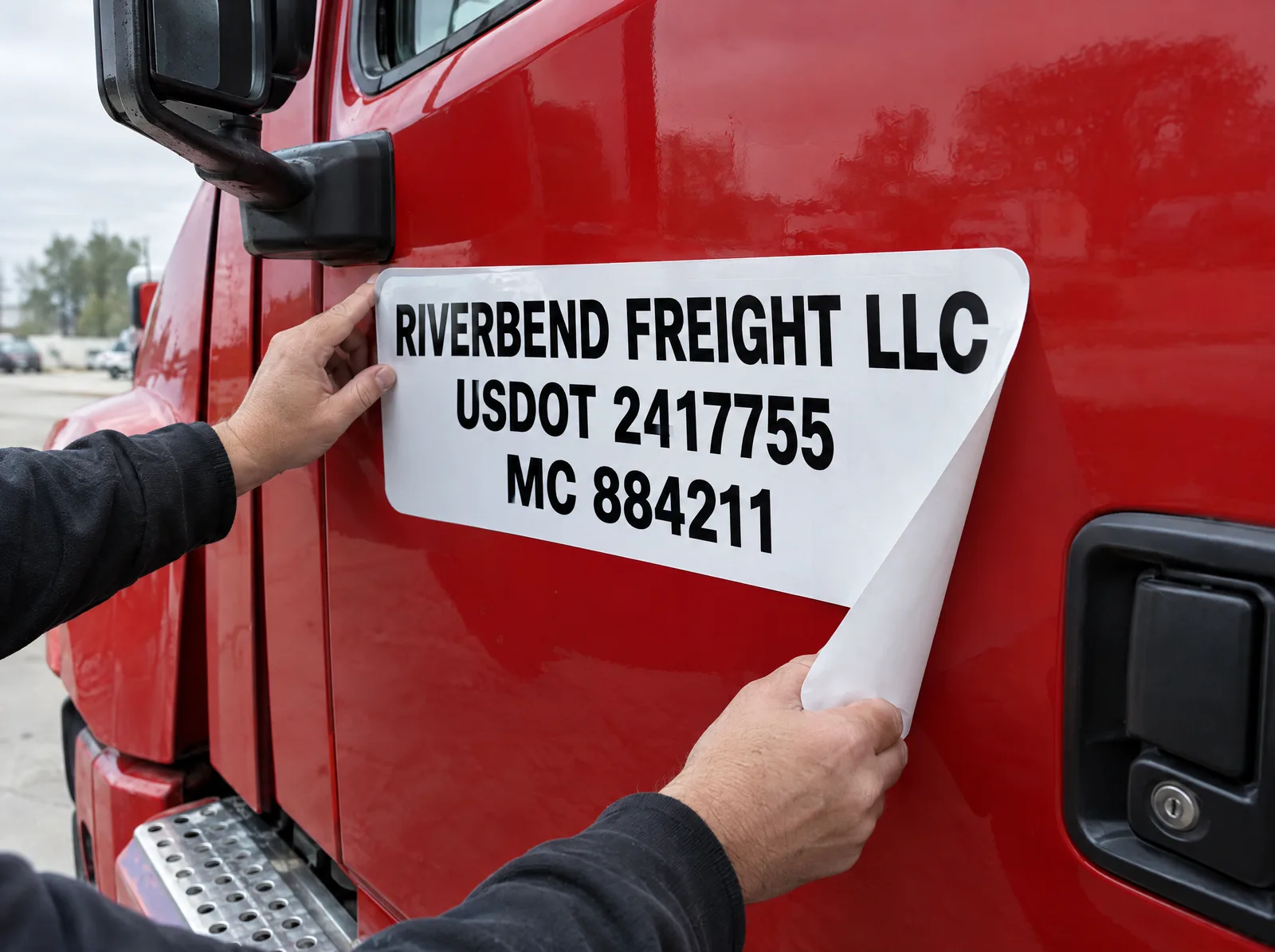

Kiss-cut decal panel being pressed onto a truck door — Going on the door

What it is: Your name and numbers printed in full color on one laminated panel per door. The cutter goes through the vinyl but stops at the liner, so each door's decal lifts off its backing sheet in one piece.
On the door: One panel with the lettering on it. White, black or clear film. On clear, only a faint edge shows.
Install: Peel it like a sticker, line it up, press it down. Two minutes a door, no tape, no squeegee skills.
Best for: Getting legal today, leased or rental trucks, and anything with a logo or more than two colors.
Lasts: Laminated print, about 5 years outdoors.

What goes on the door

Every commercial vehicle over 10,001 lb GVWR that crosses state lines must show the carrier's legal name and USDOT number on both sides of the power unit. Interstate for-hire carriers add the MC number.

Letters must contrast with the paint and be readable from 50 feet in daylight — we cut at 2 inches or larger, sized to your door.

Type the name and numbers exactly as registered with FMCSA. We send a layout proof before cutting.

Sizing

FMCSA requires legible contrasting letters readable from 50 ft in daylight — we cut USDOT numbers at 2 in and the company name to match, sized to the door.

Die-cut kit

Letters cut from premium cast vinyl rated 7 years outdoors, weeded and pre-masked in one piece per door. White standard; black or any stock color at no charge, a second color as an option. Clean the door, peel the backing, squeegee through the mask, peel the mask: about 10 minutes a door.

Kiss-cut kit

The same lettering printed and laminated on one white, black or clear panel per door, cut through the vinyl but not the liner. Peel it like a sticker and press it down: about two minutes a door. Laminated print, around 5 years outdoors.

Often ordered with DOT kits

All products →

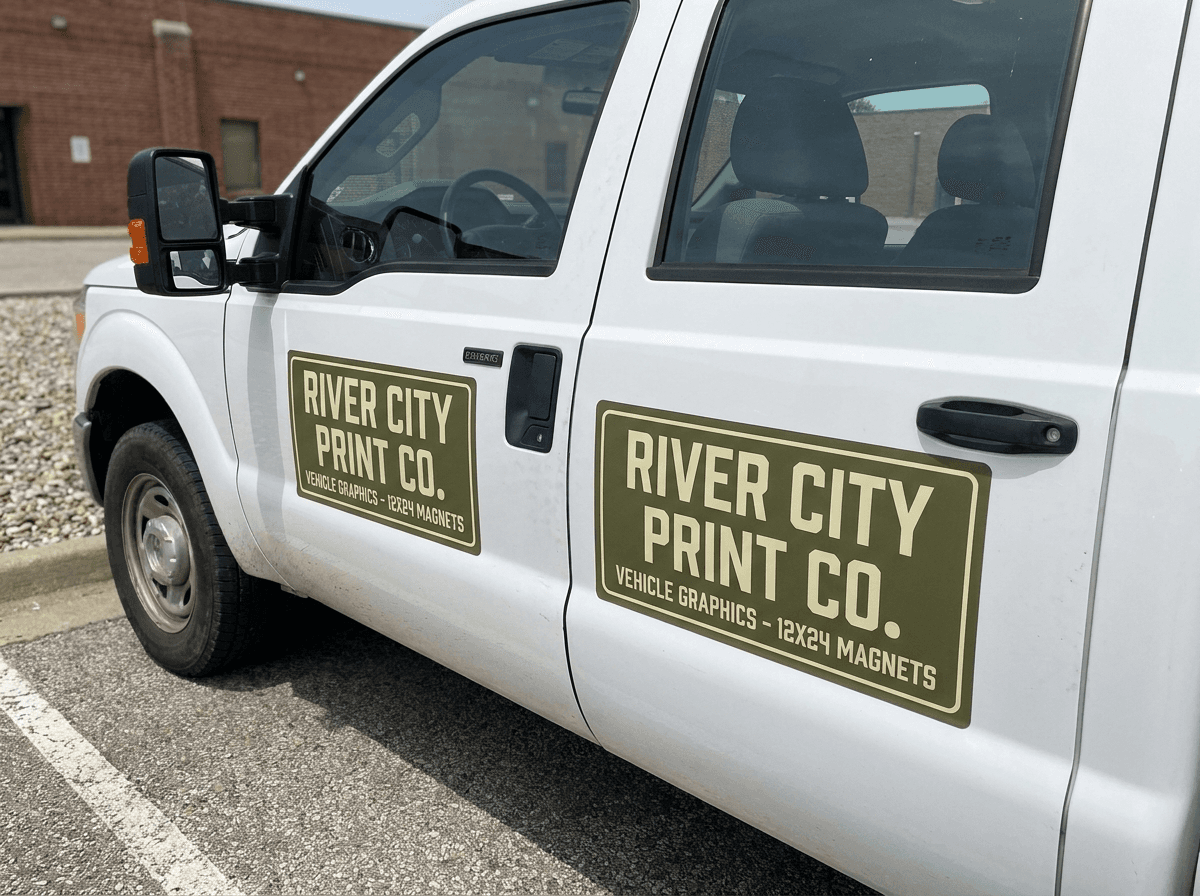

Vehicle magnetsFrom $79

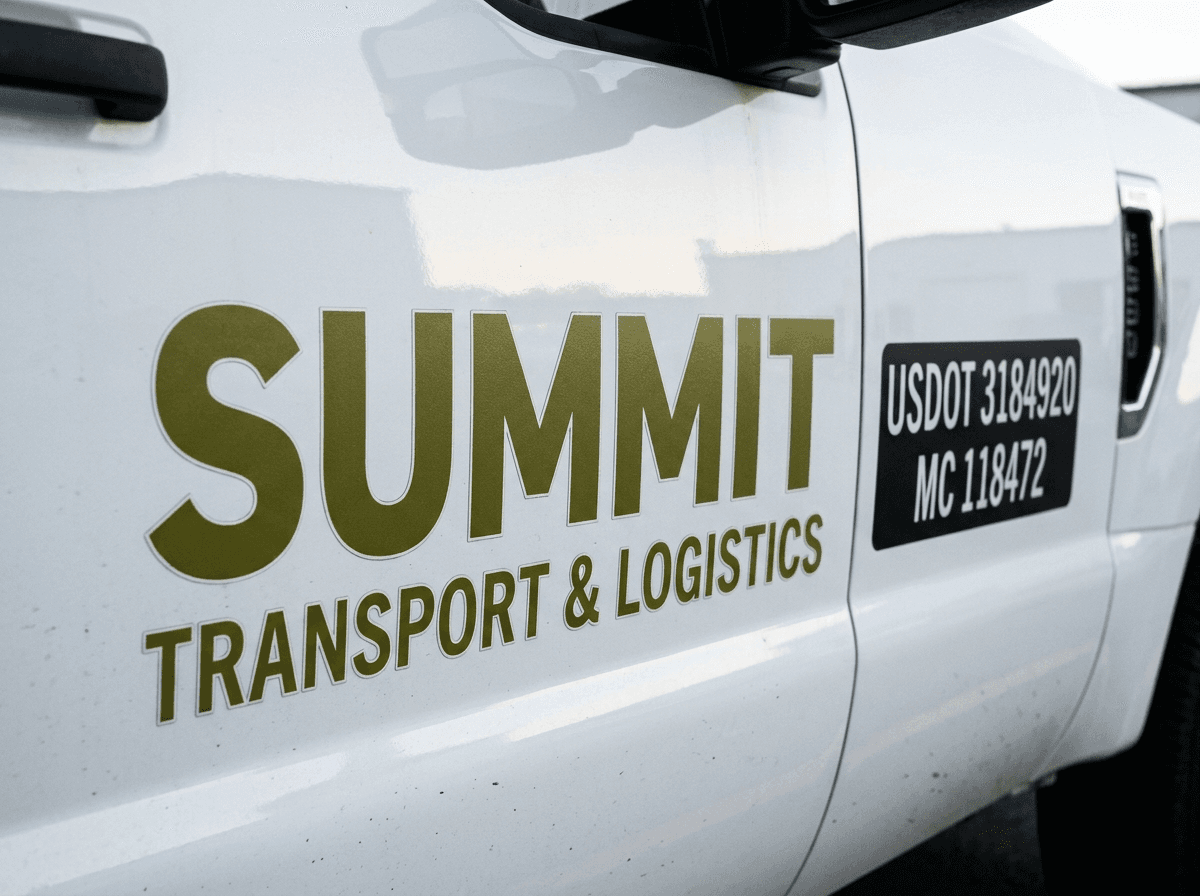

Trailer letteringGet a quote
